▶SHELL & PLATE HEAT EXCHANGER
 원형 플레이트 열교환기

Design and function of the heat exchanger
The design and function of this heat exchangers work
as a normal tubular heat exchanger, just that the tubes
have been changed to the more efficient plates.
The plates are laser/TIG welded together to a plate pack,
this plate pack is mounted in a traditional round shell.

The advantages of this heat exchanger
- No gaskets
- Safe operation without leaking
- High working temperatures 250℃
- High working pressure bar 30Bar
- High K-values
- Small liquid volume
- Small space requirement only 30% of a traditional tubular heat exchanger
- Easy service
- Max Flow Rate 250m³/hr

 CONSTRUCTION MATERIAL & APPLICATIONS

Applications
All welded plate and tubular heat exchanger
- District heating
- Steam heaters
- Thermal oil heating
- Evaporates of refrigerants
- Condensers of refrigerants
M
A
T
L
Plates
Shell
Connections

- AISI 304
- AISI 316
- TITAN
- 254 SMO

 - Carbon steel
- Stainless steel


 - Flanges according to all standards
- Threaded pipe, BSP

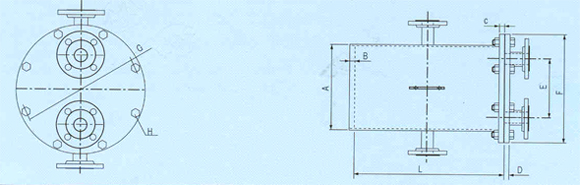

 DIMENSIONS

Type
ØA mm
B mm
C mm
D mm
E mm
ØF mm
ØG mm
L mm
SPS-16-PN 16/25
168.3
12
12
12
98
250
215
n ×2.4 +2
SPS-22-PN 16/25
219.1
15
15
15
134.6
300
265
n ×2.3 +6
SPS-72-PN 16
355.6
20
20
20
245
450
405
n ×2.8 +4
SPS-72-PN 25
355.6
20
20
25
245
450
405
n ×2.8 +4
